Product Detail

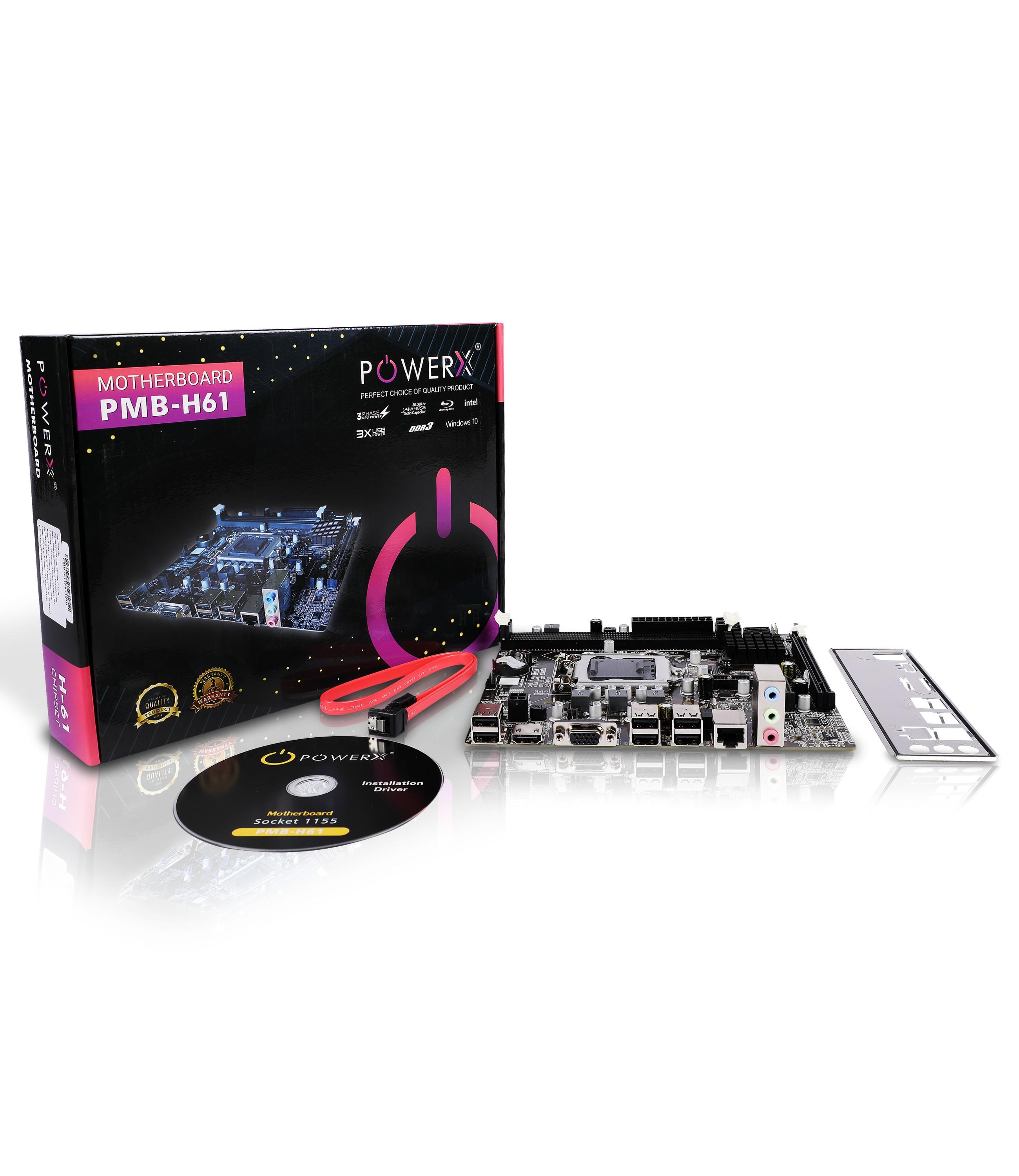

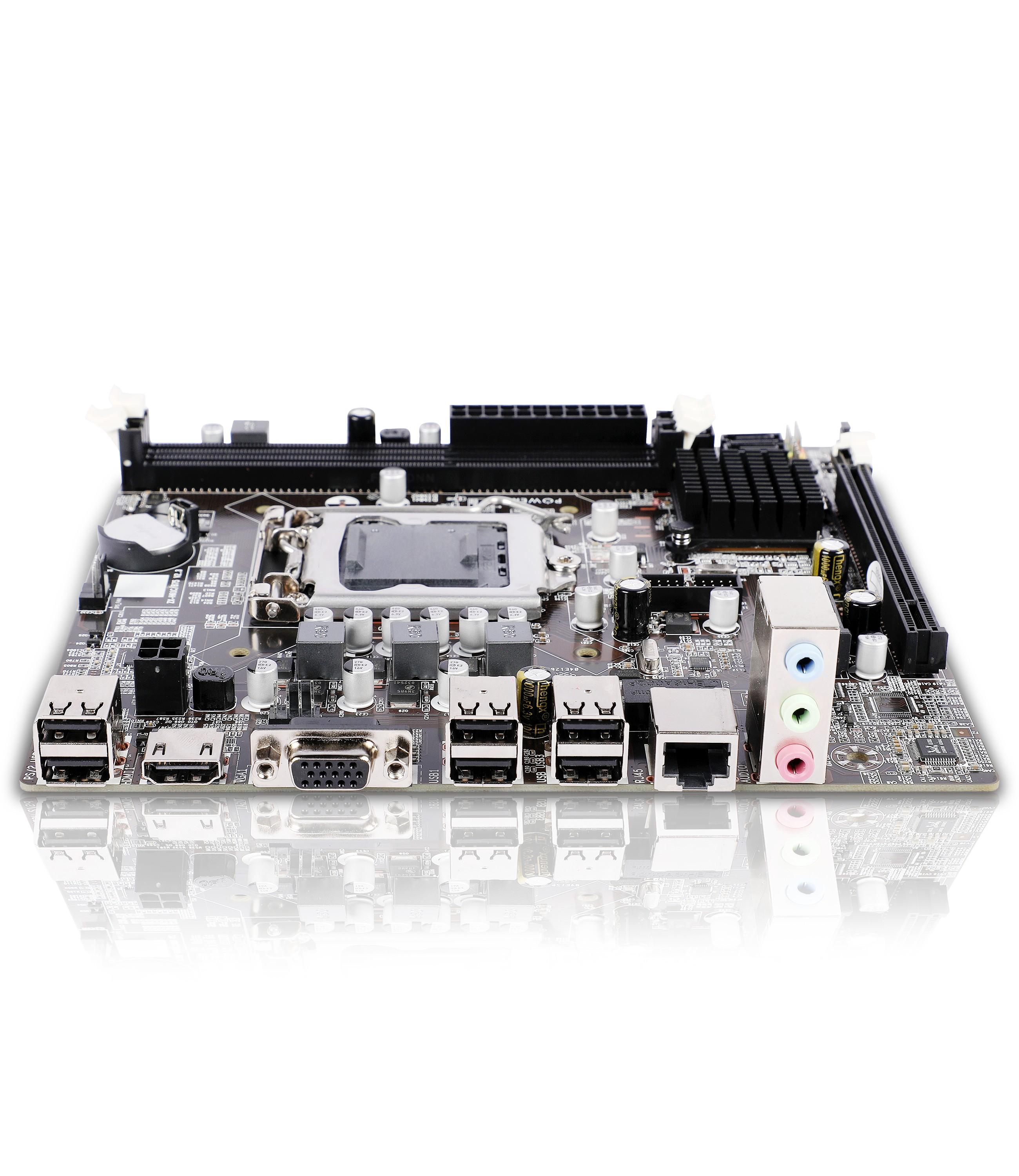

MODEL Power X Motherboard PMB-H61-DDR3
CPU Supports LGA1155 Socket i3/i5/i7 series CPU
Chipset IntelH61 Chipset
Memory 2*240-pin DDR III SDRAM Slots
Memory upto 16GB
Supports dual-channel DDRIII 1066MHz/1333/1600 MHz Memory
BIOS EFI BIOS
I/O Interface 1 x HDMI, 1 x VGA,
6 x USB 2.0, compatible with USB 1.1
1 x RJ45, 1 x 3 in 1 Audio Port( Line in, Line out, Mic in)
Onboard Interface 1 x 24-pin ATX Power Connector, 1 x 4-pin ATX 12 V Power Connector
1 x USB Connectors, can support 2 x USB 2.0
1 x F_Audio Connector, 1 x F_Panel Connector, 1 x Speaker_Connector
2 x FAN connectors, 4 x Serial ATA connection port.


MODEL Power X Motherboard PMB-H61-DDR3
Integrated Sound with 6-channel HD Audio codec Onboard
provides front audio interface; provides front stereo mic interface
Integrated LAN with 10/100 Mbps LAN Onboard
Expansion Slot 1 x PCI Express x 16 Slot, 1 x PCIEX1 Slot,
Dimension Micro-ATX architecture (170*190mm)
