Product Detail

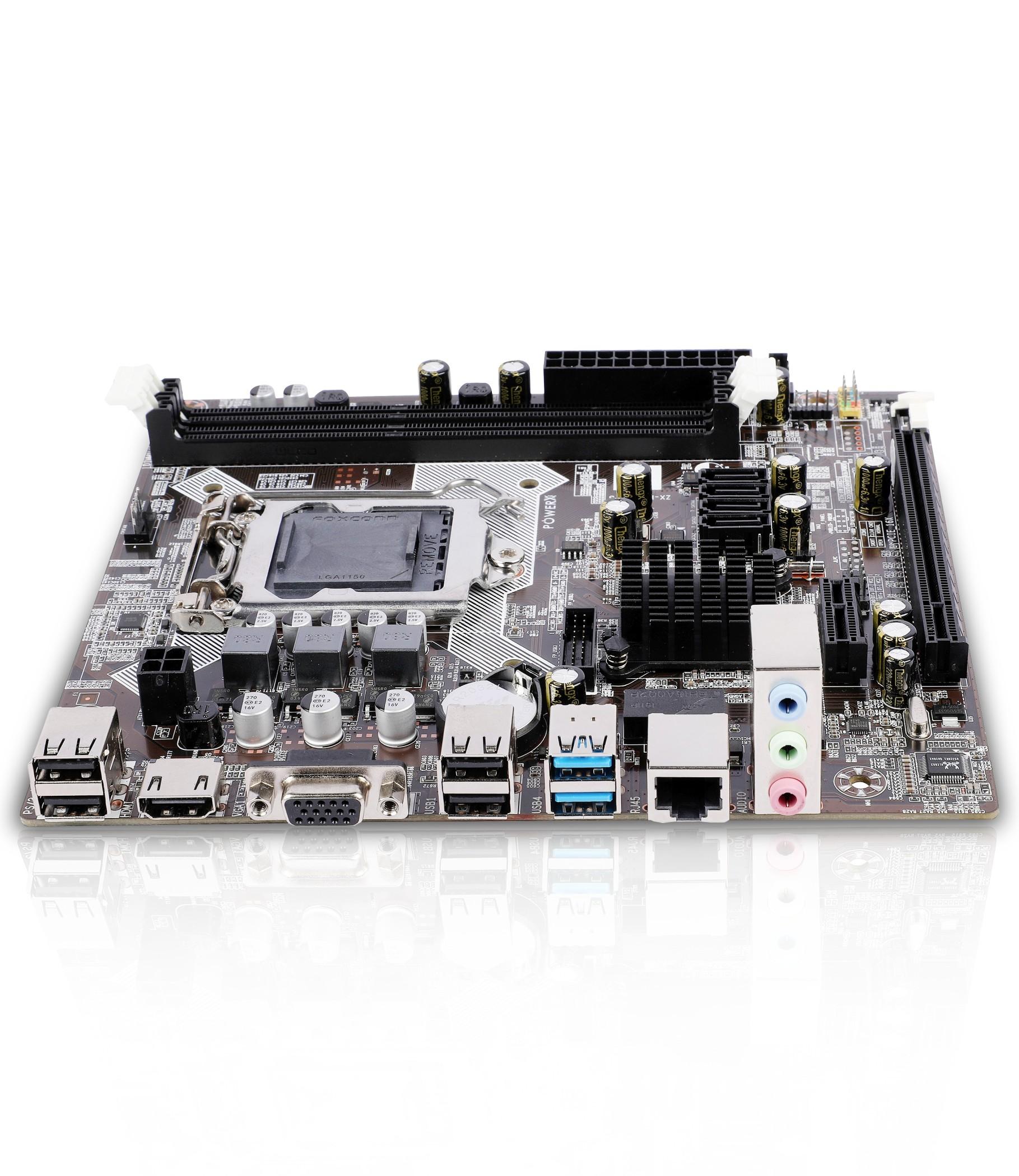

MODEL Power X Motherboard PMB-H81-DDR3
CPU Support LGA 1150 & Socket I3/I5/I7 Series
Chipset Intel H81 Chipset
Memory 2*240-pin DDR III SDRAM Slots
Memory upto 16GB
Supports dual-channel DDR III 1066MHz / 1333MHz / 1600MHz Memory
BIOS EFI Bios
I/O Interface 1 x VGA port, 1 x HDMI port
4 x USB 2.0, Compatible with USB 1.1 & 2 x USB 3.0
1 x RJ45 port, 1 x 3-in-1 Audio port (Line in / out / MIC In)
Onboard Interface 1 x 24-pin ATX Connector, 1 x 4-pin ATX 12V power connector
1 x USB Connector, can support 2 x USB 2.0 & 1 x USB Connector, can support 2 x USB 3.0
1 x F_AUDIO Connector, 1 x F_PANEL Connector, 1 x SPEAKER Connector
2 x FAN Connectors, 4 x Serial ATA Connection ports


MODEL Power X Motherboard PMB-H81-DDR3
Integrated Sound With 6-channel HD Audio Codec onboard
Provides front audio interface; provides front stereo mic interface
Integrated LAN With 10/100 Mbps LAN onboard
Expansion Slot 1 x PCI Express 16 x slot, 1 x PCI Express 1 x slot
Dimension Mirco-ATX architecture (170 x 190 mm)
